ONE K8

DG-800 Combined Proximity and Keypad Access

10001 Mini Magnet

PS1A-12VS Power Supply

CP15 Break-Glass Call Point.

DRB-001N-PTE Exit Button

U300ZL Bracket

KT10-BC Proximity Token

ONE K8

SINGLE DOOR ACCESS KIT

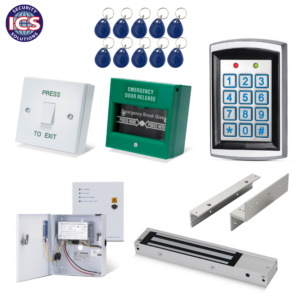

KIT CONTENTS

K1 Box

1 x DG800 proximity system, 2000 users
1 x 12Vdc, 1Amp boxed power supply
1 x U10001 magnetic lock
1 x U300ZL Z&L bracket
1 x DRB001N-PTE exit button
1 x CP21-N break-glass unit
10 x KT10BC tokens

One Door, One Box, One Solution..!

SKU: one-k8 Categories: Audio & Video Entry, Single Door Kits Tags: Aluminium, GEM, Keypad, LED Display, Proximity, Vandal Resistant, Weather Resistant

Description
Additional information

Description

Current draw: Pull in: 100mA/12Vdc; Holding: 70mA/12Vdc.
Pull in: 50mA/24Vdc; Holding: 35mA/24Vdc.
Input: Request-to-Exit, timeout reed switch contact.
Output: Dual relays, N.O./N.C/Com.
Relays rating: 2A MAX@30Vdc., 0.6A@120Vac.
Programmable 4 digit code.
RF frequency: EM 125 KHz.
Relay strike time: 01~99 seconds or toggle mode (00).
Read range: 5cm. (In noise -free environment).

CP21-N Wiring Diagram

PDF Datasheet

Click on the icon to download
this product’s datasheet.

Additional information

Dimensions	120 × 76 × 21 mm
