ONE K4

STANDALONE PROXIMITY

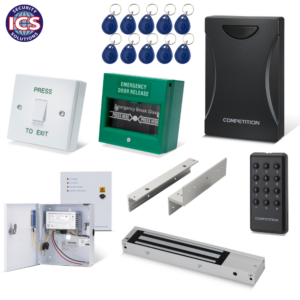

KIT CONTENTS

K1 Box

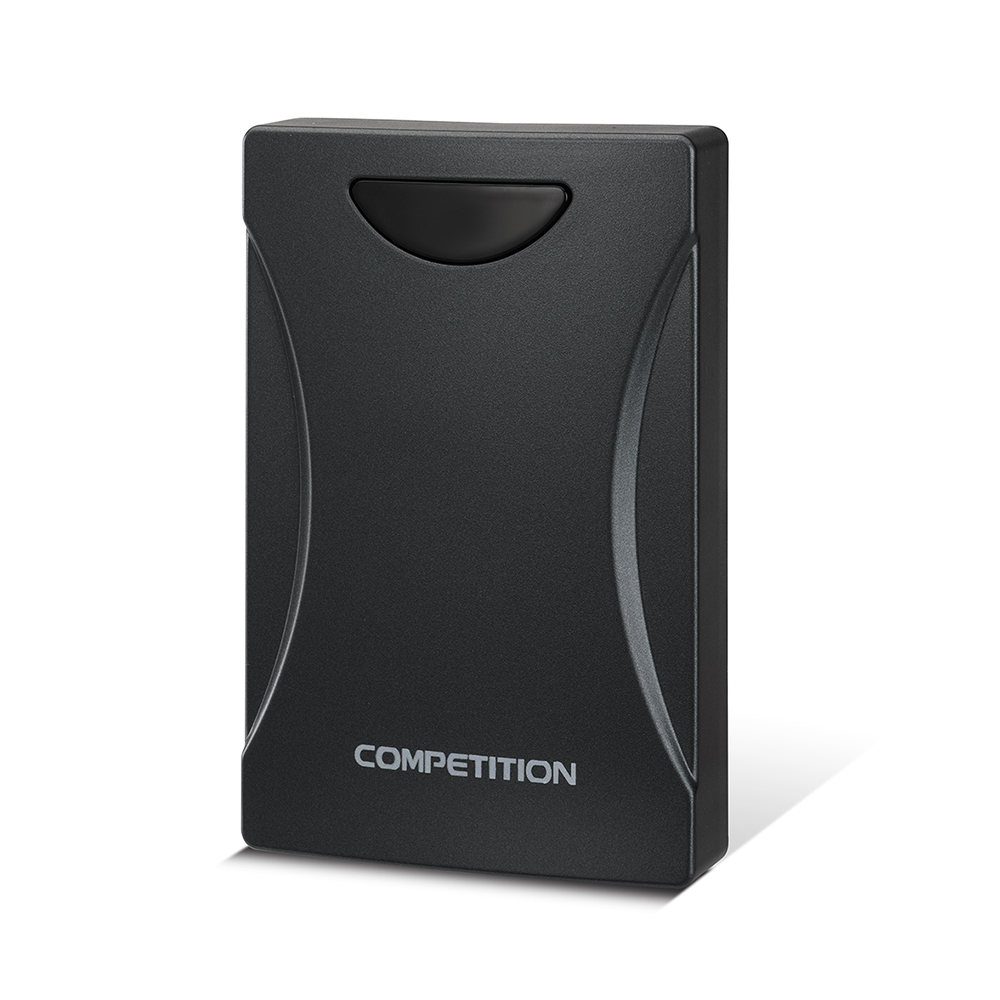

  • 1 x EPX10 proximity system, 2000 users
  • 1 x 12Vdc, 1Amp boxed power supply

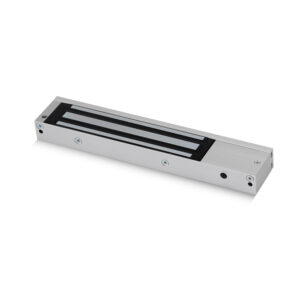

  • 1 x U10001 magnetic lock

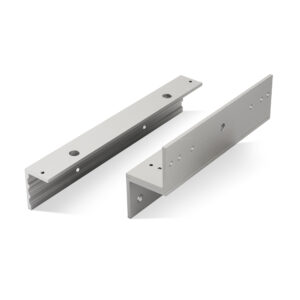

  • 1 x U300ZL Z&L bracket
  • 1 x DRB001N-PTE exit button
  • 1 x CP21-N break-glass unit
  • 10 x KT10BC proximity tokens
  • 1 x EPX10-HP Infrared Controller

One Door, One Box,
One Solution..!

Description

  • Power consumption: DC 12-15V, Current:150mA.
  • RF Frequency: 125 KHz.
  • With internal EM reader.
  • Unlock output delay time: 0~99 seconds.
  • Output: 1 relay.
  • Relay rating: 2A/12Vdc.
  • Read range: 5 to 10 cm.
  • Infrared keypad operation.
  • Built-in anti-tamper function.
  • Hand held programmer (EPX10-HP).
CP21-N Wiring Diagram



Additional information

Dimensions 86 × 86 × 21 mm
