ONE K3

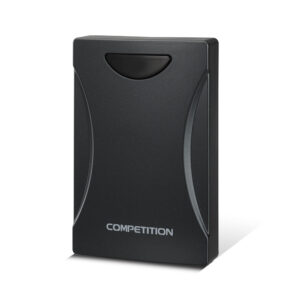

EPX-10 Standalone Proximity

M1 Lock Electric-Release

PS1A-12VS Power Supply

CP15 Break-Glass Call Point.

DRB-001N-PTE Exit Button

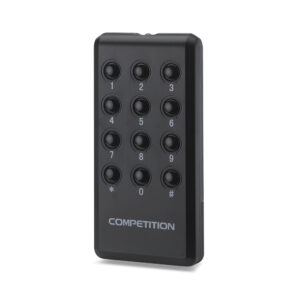

EPX-10-HP Infrared Controller

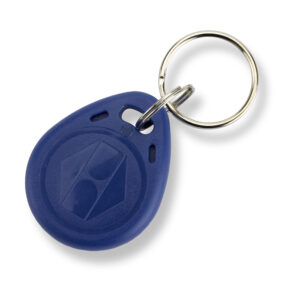

KT10-BC Proximity Token

ONE K3

STANDALONE PROXIMITY

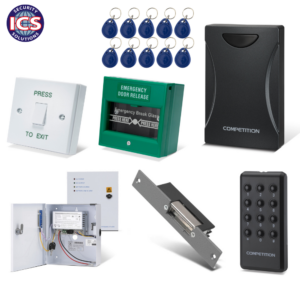

KIT CONTENTS

K1 Box

1 x EPX10 proximity system, 2000 users
1 x 12Vdc, 1Amp boxed power supply
1 x M1 lock, fail-secure electric release
1 x DRB001N-PTE exit button
1 x CP21-N break-glass unit
10 x KT10BC proximity tokens
1 x EPX10-HP Infrared Controller

One Door, One Box,
One Solution..!

SKU: one-k3 Categories: Audio & Video Entry, Single Door Kits Tags: ABS Plastic, GEM, Infra-Red, Standalone Proximity, Weather Resistant

Description
Additional information

Description

Power consumption: DC 12-15V, Current:150mA.
RF Frequency: 125 KHz.
With internal EM reader.
Unlock output delay time: 0~99 seconds.
Output: 1 relay.
Relay rating: 2A/12Vdc.
Read range: 5 to 10 cm.
Infrared keypad operation.
Built-in anti-tamper function.
Hand held programmer (EPX10-HP).

CP21-N Wiring Diagram

PDF Datasheet

Click on the icon to download
this product’s datasheet.

Additional information

Dimensions	86 × 86 × 21 mm
