ONE K5

SYSTEM KEYPAD WITH POWER SUPPLY

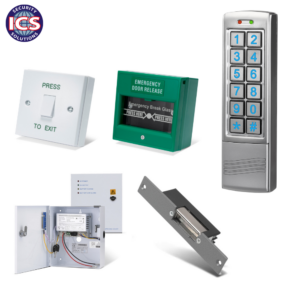

KIT CONTENTS

K1 Box

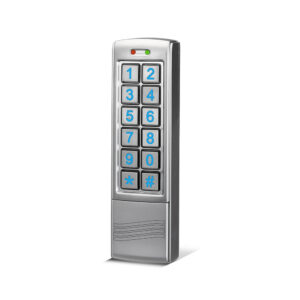

  • 1 x DG-180 digital keypad, 1000 users
  • 1 x 12Vdc, 2Amp boxed power supply
  • 1 x M1 lock, fail-secure electric release
  • 1 x DRB001N-PTE exit button
  • 1 x CP21-N break-glass unit

One Door, One Box,
One Solution..!

Description

  • Current Draw: Pull in: 50mA/12Vdc; Holding: 20mA/12Vdc.
  • Input: 2 x Request-to-Exit, timeout reed switch contact.
  • Output: Two relays, N.O./N.C/Com.
  • Relays rating: N.O 10A/120V~10A/120Vac, N.C 7A/250V~10A/28Vdc.
  • Fully programmable via keypad and master code.
  • Invalid PIN lock-out.
  • Relay strike time: 01~99 seconds.Epoxy sealed.
CP21-N Wiring Diagram



Additional information

Dimensions 150 × 44 × 7 mm
