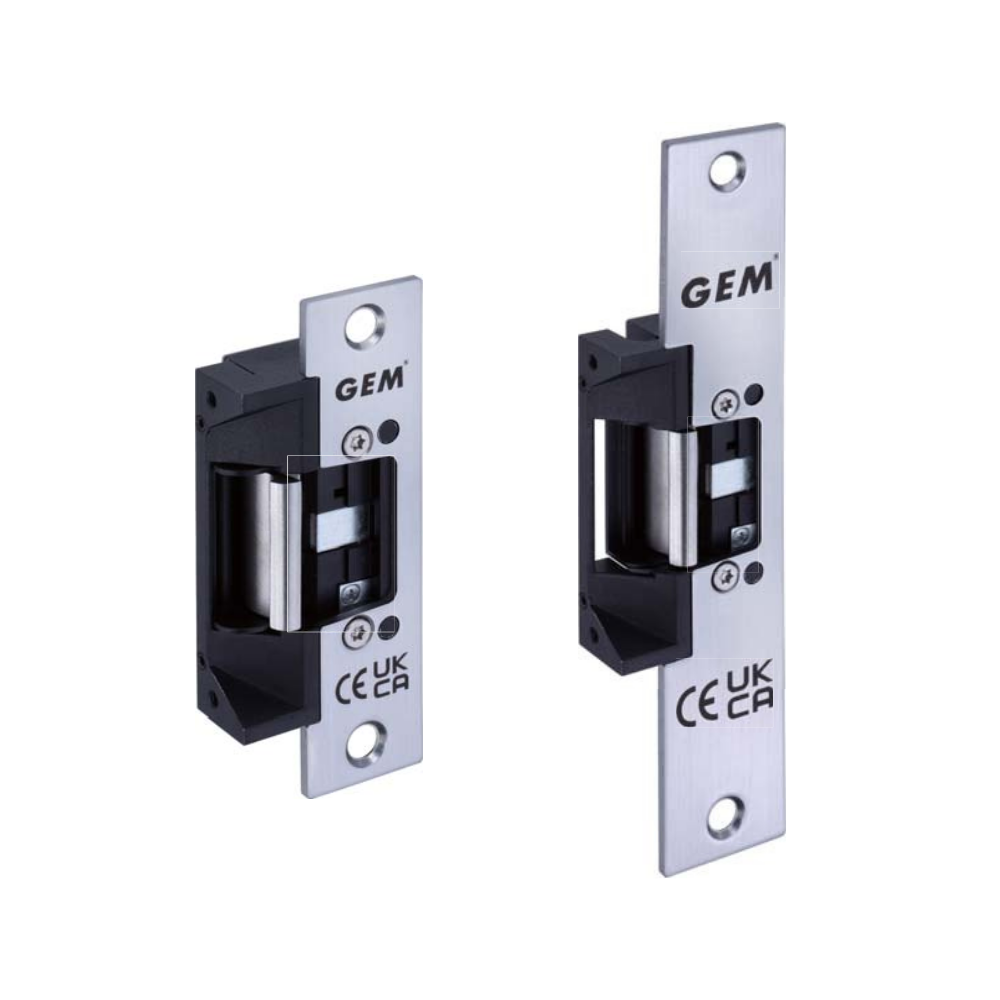

GK310MLS-24

MONITORED ELECTRIC RELEASE

GEM Logo
  • Operating voltage 24Vdc
  • Fail-Safe/Fail-Secure (Selectable)
  • Supplied with long and short plates
  • ANSI style electric release
SKU: gk310mls-24 Categories: , Tags: , ,

Description

  • Voltage tolerance: ±15%.
  • Current draw: 0.25A at 12Vdc, 0.15A at 24Vdc (at temperature 20°C).
  • Operating temperature: -10~45°C (14 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Sensor switch monitored output indicates lockset locked or unlocked status (SPDT rated 2A at 125Vdc).
  • Humidity: 0~95% non-condensing.
  • Horizontal or vertical installation.
  • Tested to 1,000,000 cycles.
  • 2000lbs jaw strength pull testing.
CP21-N Wiring Diagram

Additional information

Weight 0.673 kg
Dimensions 202 × 36.5 × 17 mm
