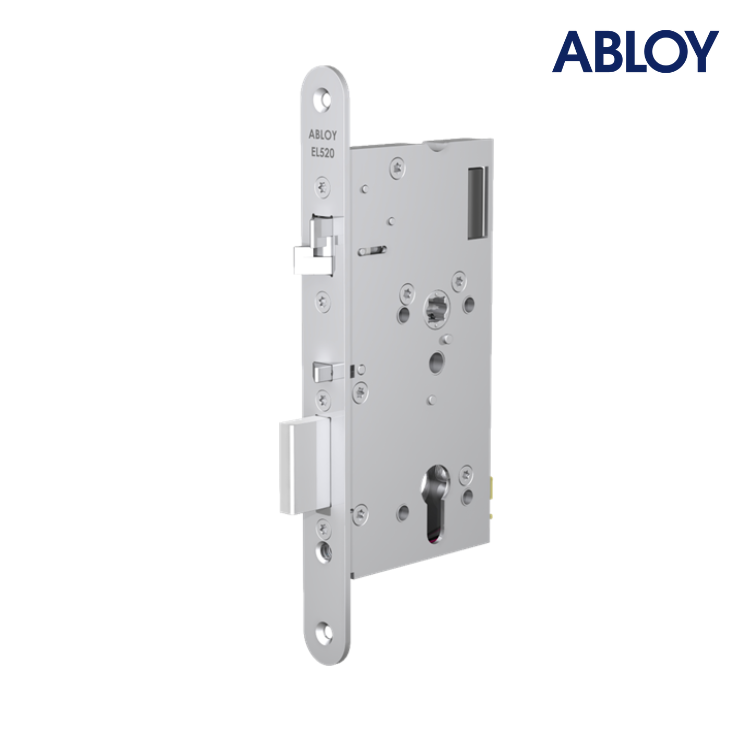

Abloy-EL520
Motorised Electric Lock
-
- Motorised bolt traction for push&pull and door automatics use
- Day/night mode
- Electric anti-tampering: if deadbolt is thrown out when door is not closed, it is withdrawn in automatically.
- Mechanical automatic locking system
- Non handed, left / right
- Burglary-resistant due to dead bolt with 20 mm throw
- Exit function by inside handle
- Suitable for fire doors
- Mechanical override with cylinder
- Back-up function: If deadbolt is withdrawn by motor and then power is cut, deadbolt is thrown out immediately (closed door) or allowed to throw out (when door is closed).
Monitoring functions
- Door status
- Handle down
- Bolt deadlocked
- Bolt in
- Key cylinder used
- Sabotage loop
Options
Abloy-351U80
Solenoid Lock
- The Abloy-351U80 Solenoid lock is suitable for single and double action doors.
- It is Fail unlocked and tested to BS EN 13637.
- Inside panic bar always operates.
- It can be supplied with 25, 44 or 54mm strike plates and is available in either 12V or 24V DC.
- Finish Type: Stainless Steel
Abloy-352M.80
Escape Door Lock
- Very quiet locking & unlocking ,silent during permanent release.
- The 352M.80 escape door lock is especially designed as additional locking for secure doors on escape routes.
- Suitable as an additional locking element for fire doors
- Universal installation in both horizontal or vertical positions.
- Holding force up to 5000N
Abloy-EL560
Handle Controlled Electric Lock
- Mechanical automatic locking system
- Non handed, left / right
- Exit side can be changed over
- Can be changed between fail-unlocked & fail-locked
- Burglary-resistant due to dead bolt with 20 mm throw
Abloy-EL580
Handle Controlled Electric Lock
- Interior use in buildings
- Suitable for medium traffic
- Not for door automatics
- Works on EXIT doors
- Exit by inside handle/ panic bar is always possible.
