A-10000
UNMONITORED MINI MORTICE MAGNET
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 600lbs (272Kg)
- Electro-less nickel plated armature
- Mortice mounting
Dimensions
38 x 27 x 228mm
Options

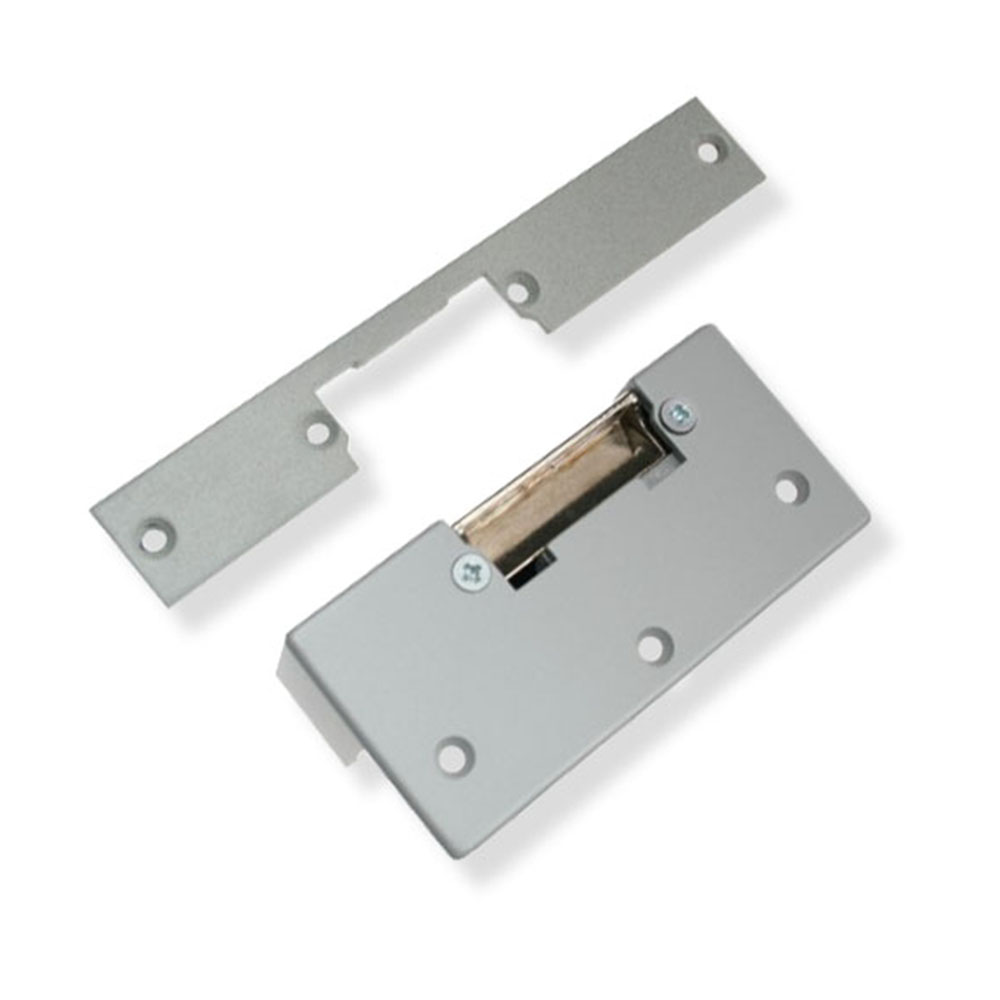

M1A LOCK-24
ELECTRIC RELEASE
- Operating voltage 24Vdc
- Fail-Secure
- Euro style
- Mortice and rim plates
- Adjustable jaw available

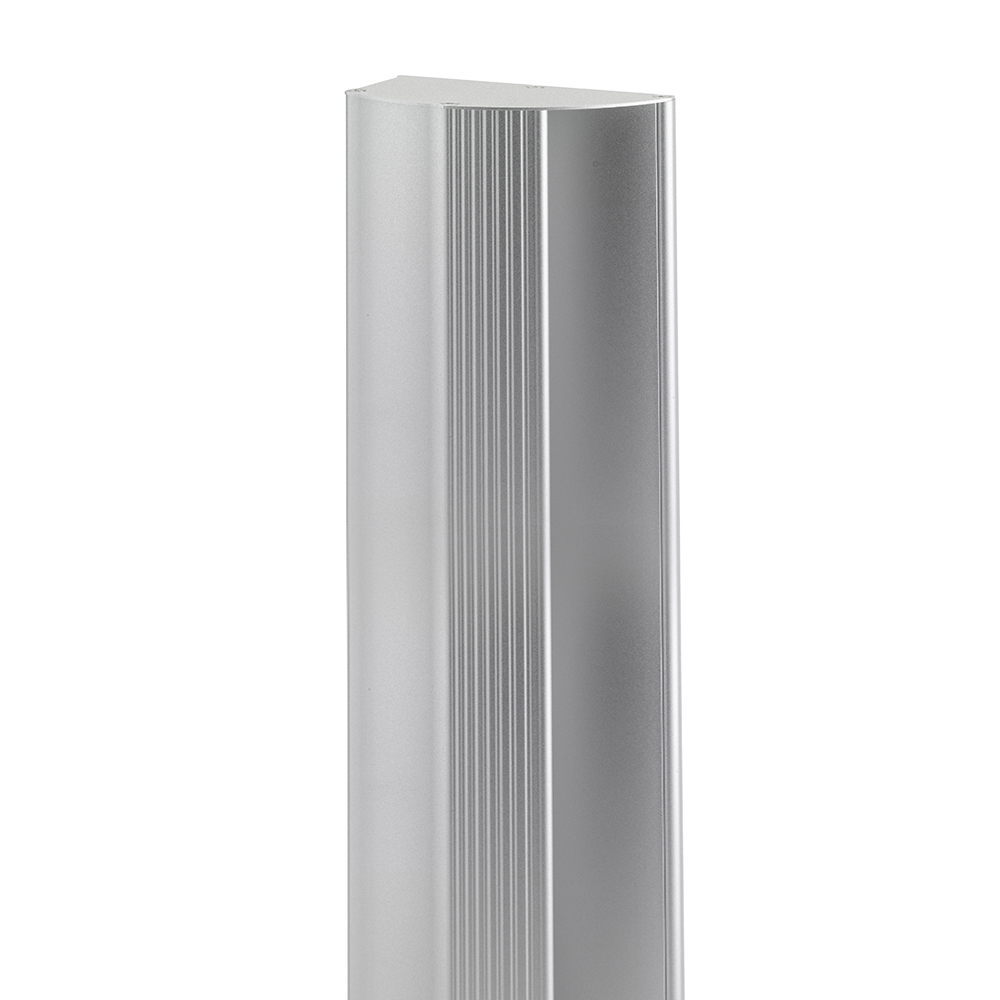

PH930
UNMONITORED DOOR HANDLE MAGNET
- Operating voltage 12~24Vdc
- Aluminium
- Unmonitored
- Fail-Safe (Power to Lock)
- Holding force 3 x 600lbs

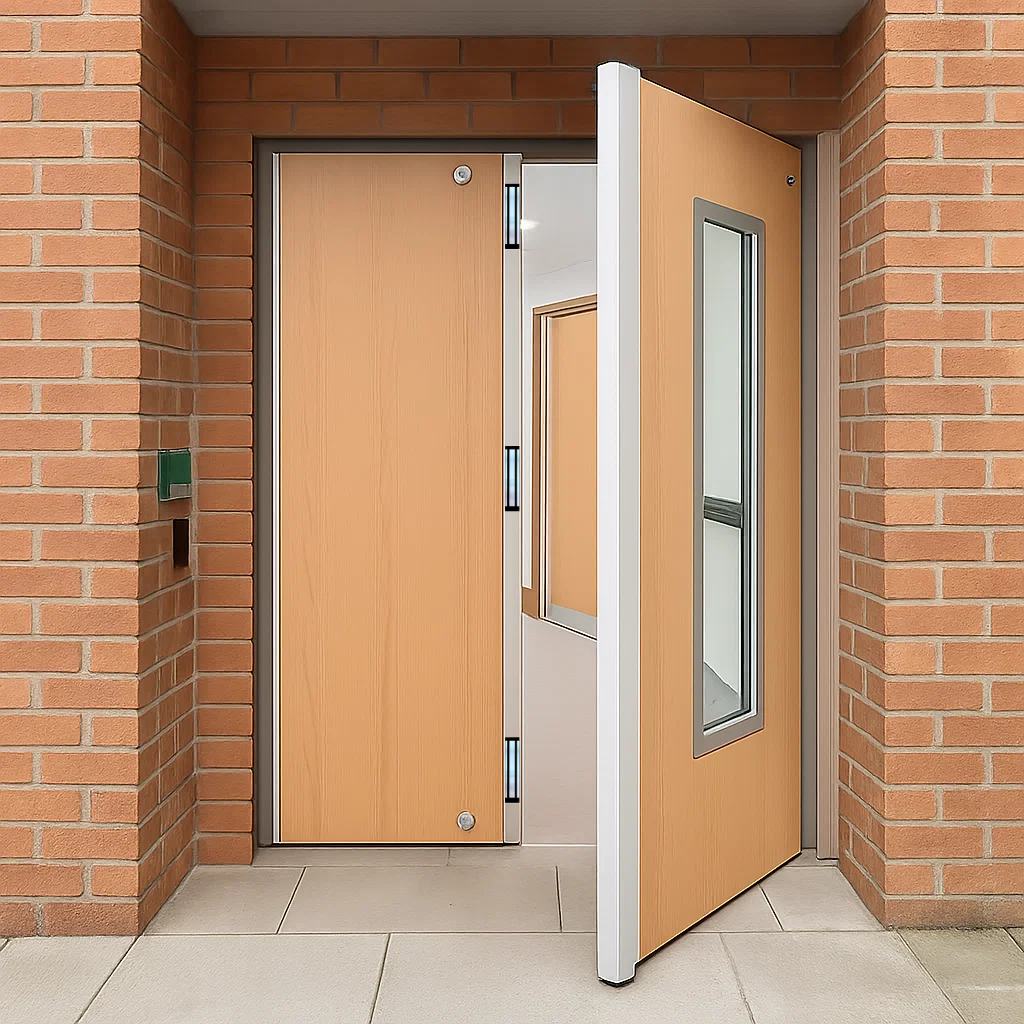

PH800-3
MONITORED DOOR HANDLE MAGNET
- Operating voltage 12~24Vdc
- Aluminium
- Monitored
- Fail-Safe (Power to Lock)
- Holding force 3 x 600lbs

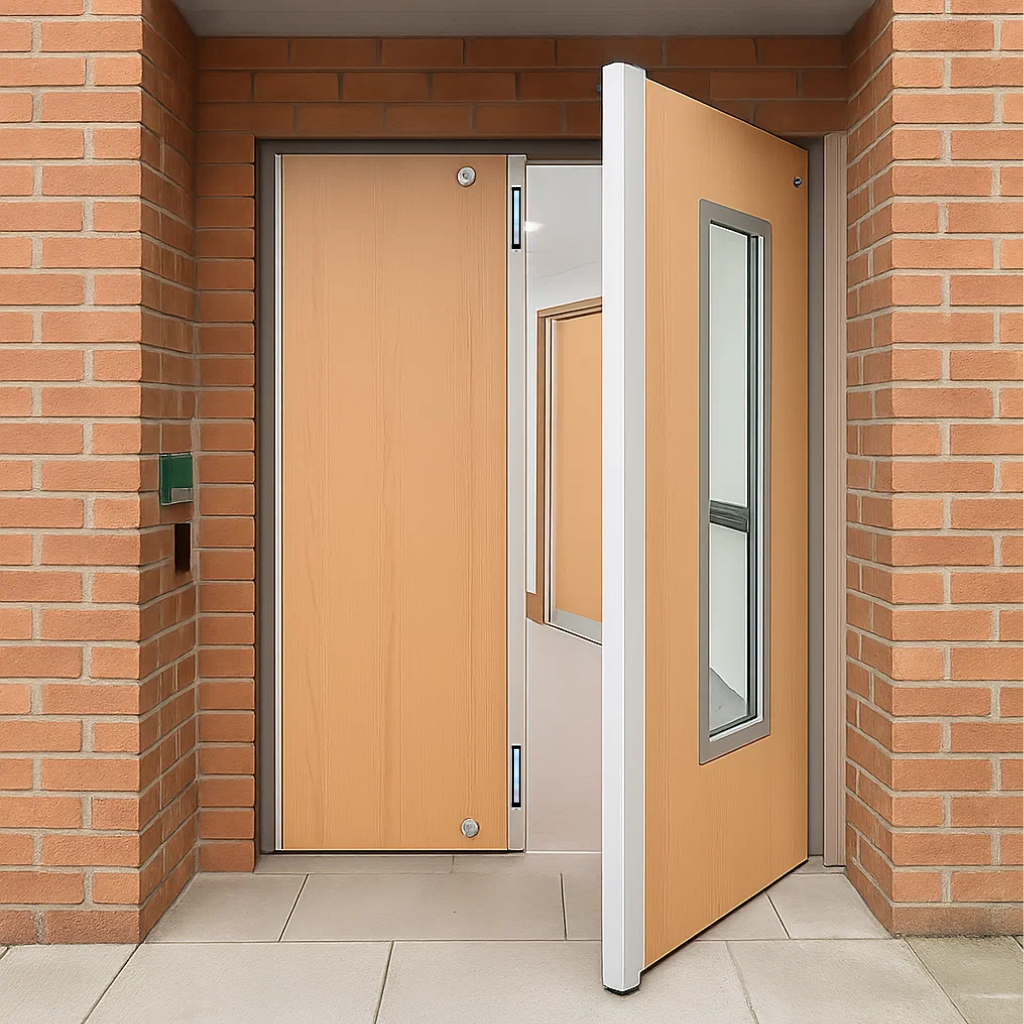

PH800
MONITORED DOOR HANDLE MAGNET
- Operating voltage 12~24Vdc
- Aluminium
- Monitored
- Fail-Safe (Power to Lock)
- Holding force 2 x 600lbs (545Kg)
