Electric Locks
A-10001-BLK
UNMONITORED MINI MAGNET IN BLACK
- Operating voltage 12~24Vdc (Selectable)
- Architectural Black Finish
- Aluminium housing
- Electro-less Nickel Plated Armature
- Fail-Safe (Power-to-Lock)
- Holding force up to 600lbs (272Kg)
A-10010-BLK
UNMONITORED STANDARD MAGNET IN BLACK
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Architectural Black Finish
- Electro-less nickel plated armature
- Holding force up to 1,200lbs (545Kg)
A-10010DS-BLK
UNMONITORED STANDARD MAGNET WITH DOOR STATUS IN BLACK
- Operating voltage 12~24Vdc (Selectable)
- Architectural Black Finish
- Aluminium housing
- Electro-less Nickel Plated Armature
- Fail-Safe (Power-to-Lock)
- Holding force up to 600lbs (272Kg)
- Door status: An independent contact that works separately from the magnet to show door status not lock status
A-10020DS-BLK
MONITORED STANDARD MAGNET WITH DOOR STATUS IN BLACK
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Electro-less nickel plated armature
- Holding force up to 1,200lbs (545Kg)
- Door status: An independent contact that works separately from the magnet to show door status not lock status
- Status LED: RED and GREEN
YD30S
ELECTRIC LOCK
- Operating voltage 12 – 24 Vdc
- Aluminium Housing
- Holding force up to 2 x 600lbs (272kg)
- Electro-less Nickel Plated Armature
- Status LED: RED and GREEN
ML450M
MONITORED ELECTRIC LOCK
- Operating voltage 12 – 24 Vdc
- Stainless Steel
- Reversible Bevel latch-bolt (Resolves positional problems)
- Fail Secure (Power to unlock)
- Auto-relocking timer delay: 0, 3, 6 or 9 seconds
- Euro profile key override
A-10060DS
UNMONITORED DOUBLE STANDARD MAGNET WITH DOOR STATUS
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 2 x 1200lbs (544Kg)
- Electro-less nickel plated armature
- Door status: An independent contact that works separately from the magnet to show door status not lock status
A-10040DS
MONITORED DOUBLE STANDARD MAGNET WITH DOOR STATUS
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 2 x 1200lbs (544Kg)
- Electro-less nickel plated armature
- Status LED: RED and GREEN
- Door status: An independent contact that works separately from the magnet to show door status not lock status
A10020M
MONITORED STANDARD MAGNET
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
- Status LED: Red and Green

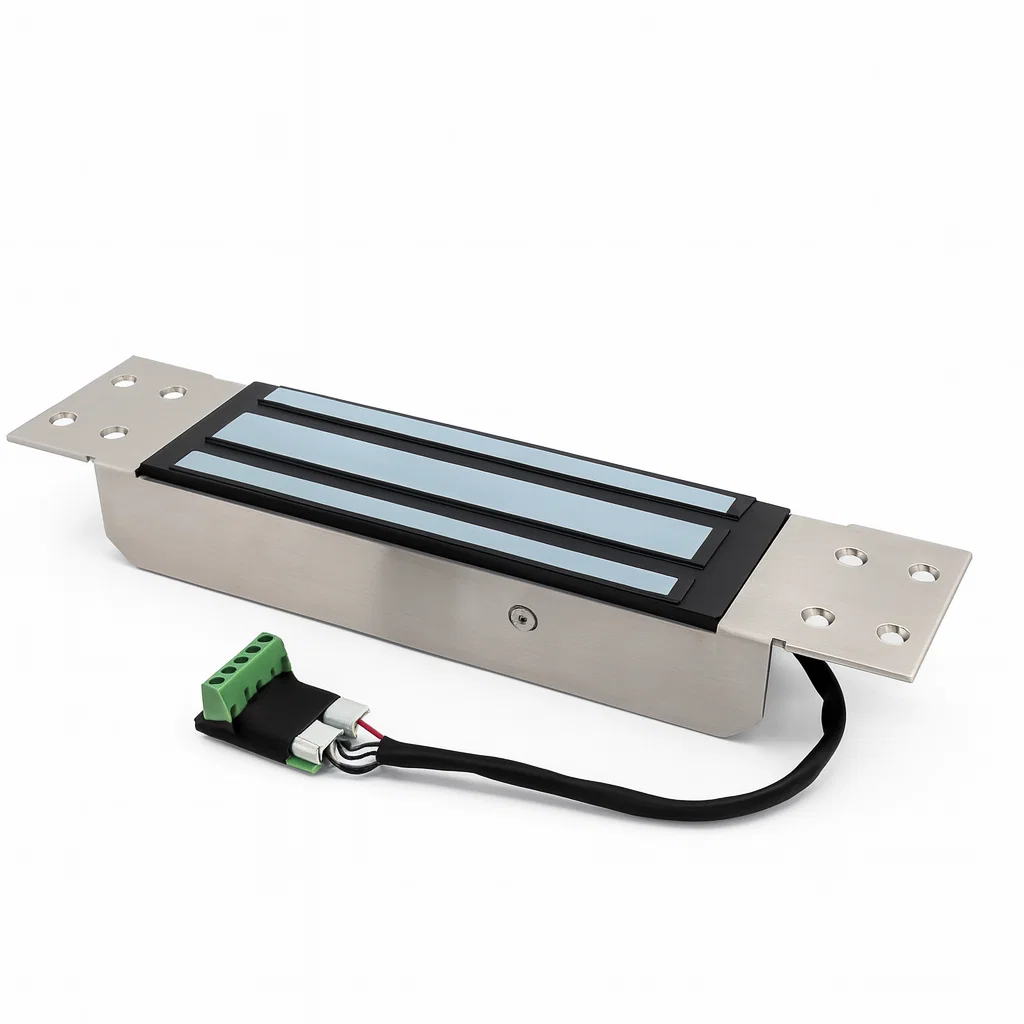

A500M
MORTICE MONITORED STANDARD MAGNET
- Operating voltage 12~24Vdc (Selectable)
- Stainless Steel Housing
- Electro-less nickel plated armature
- Holding force up to 1,200lbs (545Kg)
A-10020DS
MONITORED STANDARD MAGNET WITH DOOR STATUS
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Electro-less nickel plated armature
- Holding force up to 1,200lbs (545Kg)
- Door status: An independent contact that works separately from the magnet to show door status not lock status
A-10010DS
UNMONITORED STANDARD MAGNET WITH DOOR STATUS
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Electro-less nickel plated armature
- Holding force up to 1,200lbs (545Kg)
- Door status: An independent contact that works separately from the magnet to show door status not lock status
