PACKAGE 6E
High Security
ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
High security narrow stile door applications with motor operated deadbolt and latch bolt, inside handle always operates.
Read in, free egress- for narrow stile doors.
Complies with EN179 w hen used with correct furniture, EN1634-l, EN61000-6-l, E Nl303 (cylinder), EN14846.
Key override at all times from outside.
This package includes:
EL420 Motor Lockcase,
CY326 Single EURO Cylinder,
DL8 Door Loop,
60-0719-SSS Handle Set with Pull Pad,
DC240 door closer (optional)
3192750/115PZ+BL (alternative)
Backsets available: 30mm, 35mm, 40mm, 45mm
ORDERING CODES:
ABLOY-EL420-30-PACK6E
ABLOY-EL420-35-PACK6E
ABLOY-EL420-40-PACK6E
ABLOY-EL420-45-PACK6E
Options

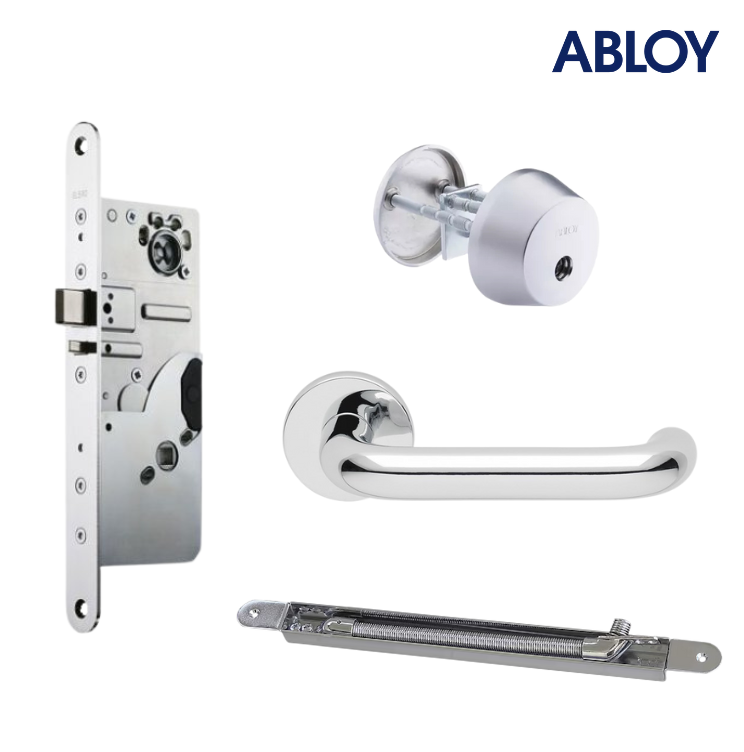

PACKAGE 11E
High Security
-
ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
-
High security. wood or metal door applications with motor operated deadbolt and latch bolt, inside handle always operates.
-
Optional electrical handle control: if used negates EN179
-
Complies with EN179 when used with the correct furniture, EN1634-1, EN6100-6-1, EN1303 (cylinder), EN14846
-
Key override at all times.

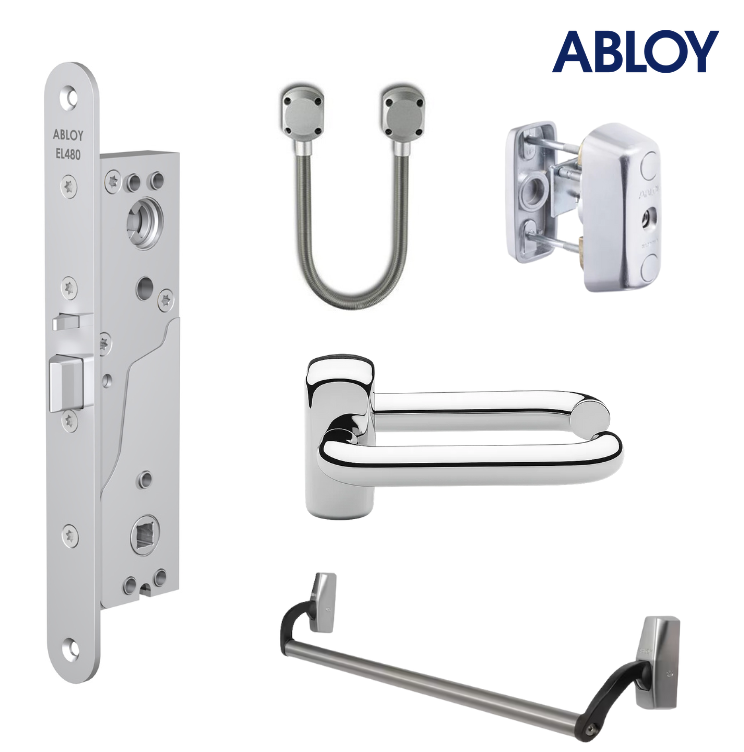

PACKAGE 10P
Escape (EN1125)
-
ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
-
Narrow stile door applications with handle operation. Inside handle always operates and outside handle is controlled and activated on signal from access control system.
-
Read in, free egress- for narrow stile doors.
-
Complies with EN1125 when used with correct furniture, EN1634-1, EN61000-6-1, EN1303 (cylinder), EN14846
-
Key override at all times.

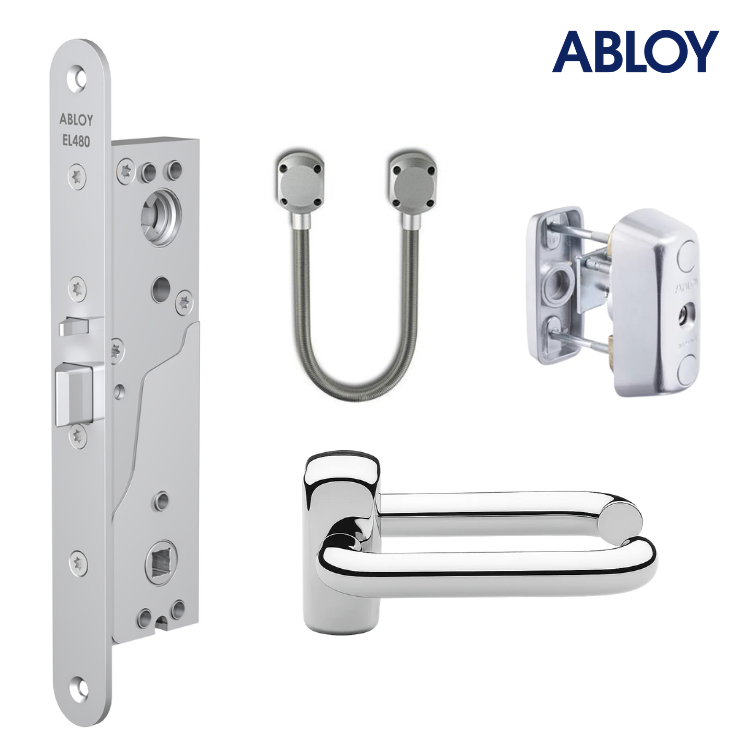

PACKAGE 10E
Narrow stile door Read in, free egress - complies with EN179
-
ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
-
Narrow stile door applications with handle operation. Inside handle always operates and outside handle is controlled and activated on signal from access control system.
-
Read in, free egress- for narrow stile doors.
-
Complies with EN179 when used with correct furniture, EN1634-1, EN61000-6-1, EN1303 (cylinder), EN14846.
-
Key override at all times.
PACKAGE 9E
Standard door Read in, free egress - complies with EN179
-
ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
-
Wood or metal door applications with handle operation. Inside handle always operates and outside handle is controlled and activated on signal from access control system.
-
Read in, free egress- for standard doors.
-
Complies with EN179 when used with correct furniture, EN1634-1, EN61000-6-l, EN1303 (cylinder), EN14846.
-
Inside handle always operates and outside handle is controlled and activated on signal from access control systems.
