PACKAGE 14E

Spotlight image
PACKAGE 14E

High Security - Not for Fire Doors

ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.

High security wood or metal door applications with motor operated deadbolt and latch bolt, inside handle always operates.

Read in, free egress- for standard doors.

Complies with EN 1303, EN 14846, EN 179, EN 61000-6-1

Key override at all times from the outside.

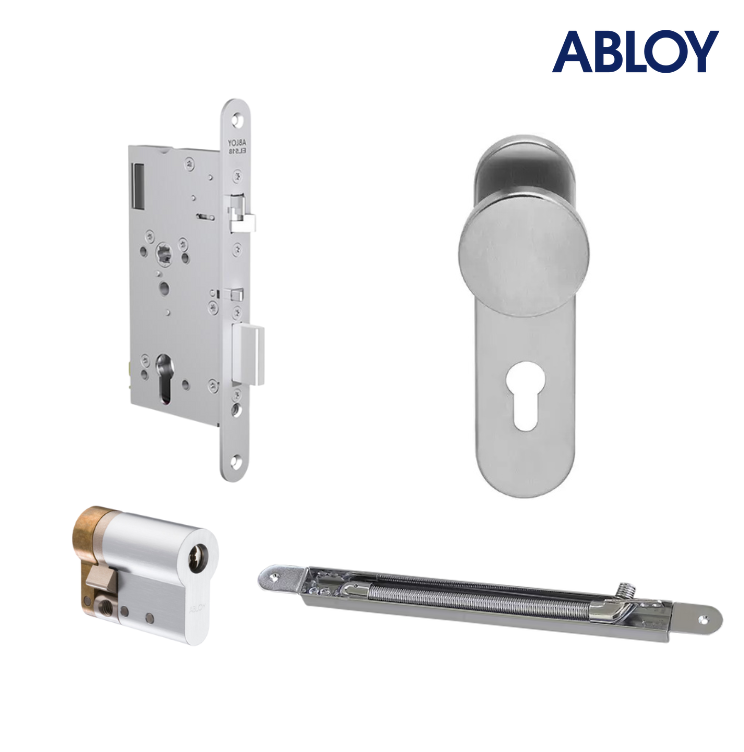

This package includes:

EL518 Motor Lockcase,

CY326 Single EURO Cylinder,

EA280 Concealed Door Loop,

319242/115PZ+BL Handle Set,

DC240 optional door closer.



Backsets available: Standard 65mm, 55mm, 60mm

ORDERING CODES:

ABLOY-EL518-55-PACK14E

ABLOY-EL518-60-PACK14E

ABLOY-EL518-65-PACK14E

Options

Package 1E (1)

PACKAGE 1E

Standard door Read in, free egress - complies with EN179
  • ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
  • Wood or metal door applications with handle operation. The inside handle always operates, while the outside handle is controlled and activated by a signal from the access control system.
  • Read in, free egress- for multipoint standard doors.
  • Complies with EN179 when used with correct furniture, EN1634-l, EN61000-6-l, EN1303 (cylinder), EN14846
  • Key override at all times from the outside.
View PACKAGE 1E
Package 1MP (1)

PACKAGE 1MP

Escape (EN1125)
  • ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
  • Wood or metal door applications with handle operation, inside panic bar always operates and the outside handle is controlled and activated on signal from access control system.
  • Read in, free egress- for multipoint, standard doors.
  • Complies with EN1125 when used with correct furniture, EN1634-1, EN61000-6-1, EN1303 (cylinder) EN14846
  • Key override at all times from outside.
View PACKAGE 1MP
PACKAGE 1ME (1)

PACKAGE 1ME

Multipoint
  • ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
  • Wood or metal door applications with handle operation. The inside handle always operates, while the outside handle is controlled and activated by a signal from the access control system.
  • Read in, free egress- for multipoint standard doors.
  • Complies with EN179 when used with correct furniture, EN1634-l, EN61000-6-l, EN1303 (cylinder), EN14846
  • Key override at all times from the outside.
View PACKAGE 1ME
Package 1P (1)

PACKAGE 1P

Escape (EN1125)

  • ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.

  • Wood or metal door applications with handle operation. Inside panic bar always operates, and the outside handle is controlled and activated on signal from the access control system.

  • Read in, free egress- for standard doors,

  • Complies with EN179 when used with correct furniture, EN1634-1, EN61000-6-1, EN1303 (Cylinder), EN14846

  • Key override at all times from outside.

View PACKAGE 1P
