PACKAGE 13MP
Multipoint - Escape - High Sec - Not Fire Doors
ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
High security narrow stile door applications with motor operated deadbolt, hook bolts and latch bolt.
Inside panic bar always operates.
Read in, free egress- for narrow stile doors.
Complies with EN1125 when used with correct furniture, EN61000-6-l, EN1303 (cylinder), EN14846
Key override at all times from outside.

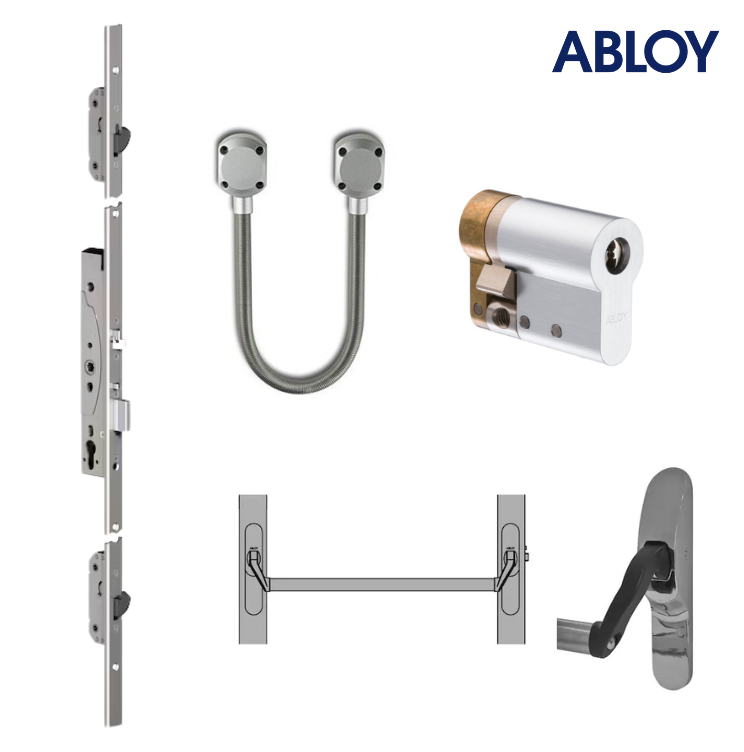

This package includes:
MP418 Multipoint Motor Lockcase,
CY326 Single EURO Cylinder,
DL8 Door Loop,
PBE-011-EL420 Panic Bar with cylinder escutcheon,
DC240 optional door closer.
Backsets available: 30 mm, 35 mm, 40 mm, 45 mm.
ORDERING CODES:
ABLOY-MP418-30-PACK13MP
ABLOY-MP418-35-PACK13MP
ABLOY-MP418-40-PACK13MP
ABLOY-MP418-45-PACK13MP
Options
Package 11P
Escape (EN1125)
- ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
- High security wood or metal door applications with motor operated deadbolt and latch bolt, inside panic bar always operated.
- Key override at all times from outside.
- Complies with EN1125 when used with correct furniture and functions, EN1634-1, EN61000-6-1, EN1303 (Cylinder), EN14846
Package 12E
High Security
- ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
- Read in, free egress- for narrow stile doors.
- Key override at all times from outside.
- Compliant with EN179 when used with correct furniture and functions, EN1634-1, EN61000-6-1, EN1303 (cylinder) EN14846
Package 12P
Escape (EN1225)
- ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
- High security narrow stile door applications with motor operated deadbolt and latch bolt, inside panic bar always operated.
- Key override at all times from outside.
- Read in, free egress- for narrow stile doors.
- Complies to EN1125 when used with correct furniture and functions, EN1634-1, EN61000-6-1
PACKAGE 13E
Multipoint - High Security - Not for Fire Doors
- ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.
- High security narrow stile door applications with motor operated deadbolt and latch bolt, inside handle always operated. Key override at all times from outside.
- Read in, free egress- for narrow stile doors.
- RComplies with EN179 when used with correct furniture, EN61000-6-1, EN1303 (Cylinder), EN14846
- Key override from the outside.
