PACKAGE 6P

Escape - High Security

ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.

High security narrow stile door applications with motor operated deadbolt and latch bolt, inside panic bar always operates.

Read in, free egress- for narrow stile doors.

Complies with EN1125 when used with correct furniture, EN1634-l, EN61000-6-l, EN1303 (cylinder), EN14846.

Key override at all times from outside.

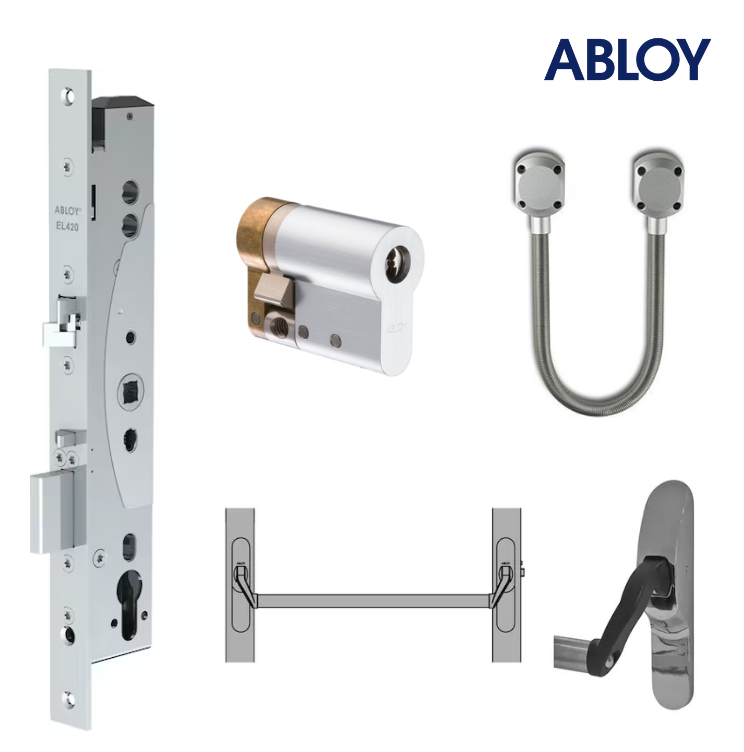

This package includes:

EL420 Motor Lockcase,

CY326 Single EURO Cylinder,

DL8 Door Loop,

PBE011-EL420 Panic Bar with cylinder escutcheon,

DC240 door closer (optional)

Backsets available: 30mm, 35mm, 40mm, 45mm

ORDERING CODES:

ABLOY-EL420-30-PACK6P

ABLOY-EL420-35-PACK6P

ABLOY-EL420-40-PACK6P

ABLOY-EL420-45-PACK6P
