PACKAGE 5P

Escape - High Security

ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.

High security wood or metal door applications with motor operated deadbolt and latch bolt, inside panic bar always operates.

Read in, free egress- for standard doors.

Complies with EN1125 when used with correct furniture, EN1634-l, EN61000-6-l, EN1303 (cylinder), EN14846.

Key override at all times from outside.

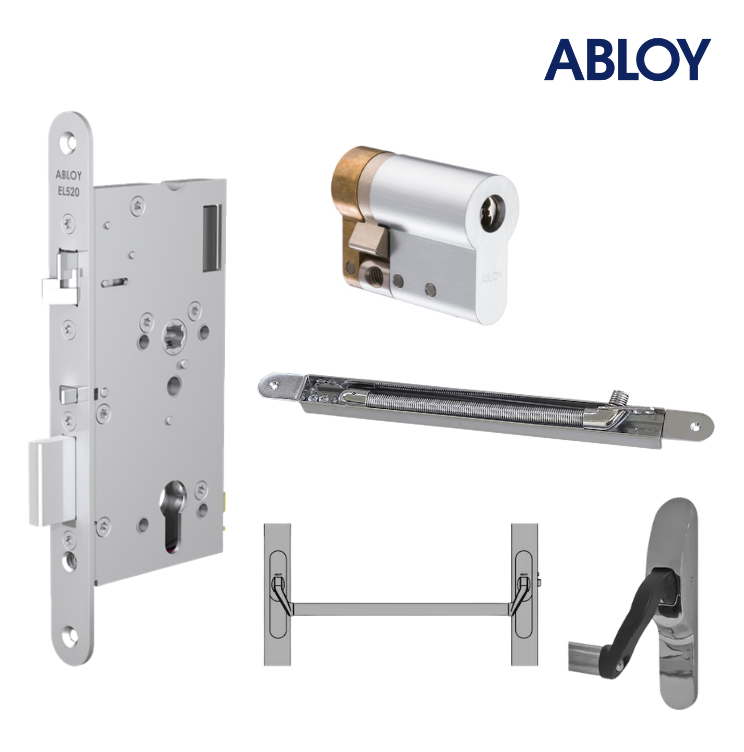

This package includes:

EL520 Motor Lockcase,

CY326 Single EURO Cylinder,

EA280 Concealed Door Loop,

PBE011-EL520 Panic Bar with Cylinder escutcheon,

DC240 door closer (optional)

Backsets available: Standard 55mm, 60mm, 65mm

ORDERING CODES:

ABLOY-EL520-55-PACK5P

ABLOY-EL520-60-PACK5P

ABLOY-EL520-65-PACK5P
