PACKAGE 5MP

Multipoint - Escape - High Security

ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.

High security wood or metal door applications with motor operated deadbolt, hook bolts and latch bolt, inside panic bar always operates.

Read in, free egress for standard doors.

Complies with EN 1125 when used with correct furniture, EN1634-l, EN61000-6-l, EN1303 (cylinder), EN14846

Key override at all times from the outside.

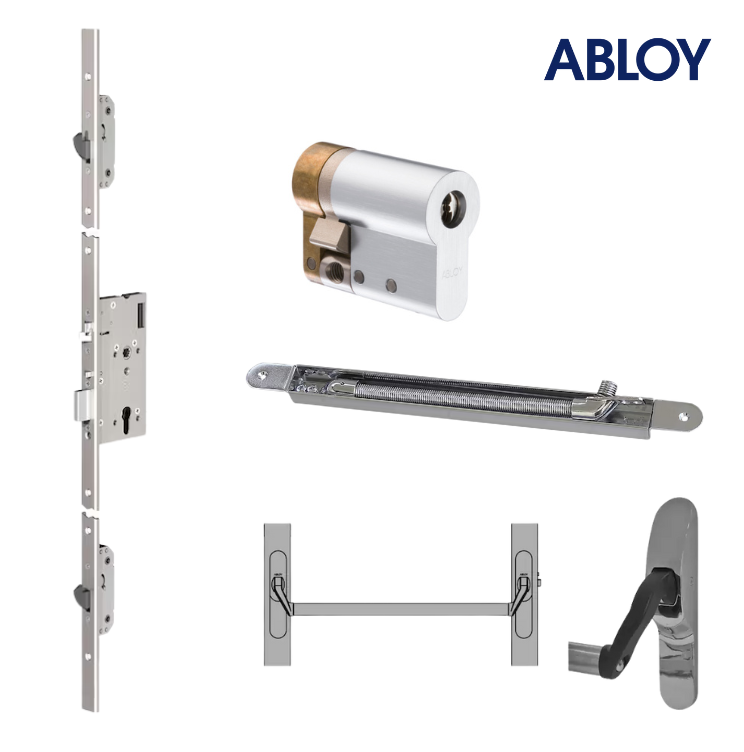

This package includes:

MP520 Multipoint Motor Lockcase,

CY326 Single EURO Cylinder,

EA280 Concealed Door Loop,

PBE011-EL520 Panic Bar with Cylinder escutcheon,

DC240 door closer (optional)

Backsets available: 55mm, 60mm, 65mm

ORDERING CODES:

ABLOY-MP520-55-PACK5MP

ABLOY-MP520-60-PACK5MP

ABLOY-MP520-65-PACK5MP
