PACKAGE 3MP

Escape (EN1125)

ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.

Narrow stile door applications with handle operation, inside panic bar always operates and the outside handle is controlled and activated on signal from access control system.

Read in, free egress, for narrow stile multipoint doors.

Complies with EN1125 when used with correct furniture, EN1634-l, EN 61000-6-1, EN1303 (cylinder), EN14846.

Key override at all times from outside.

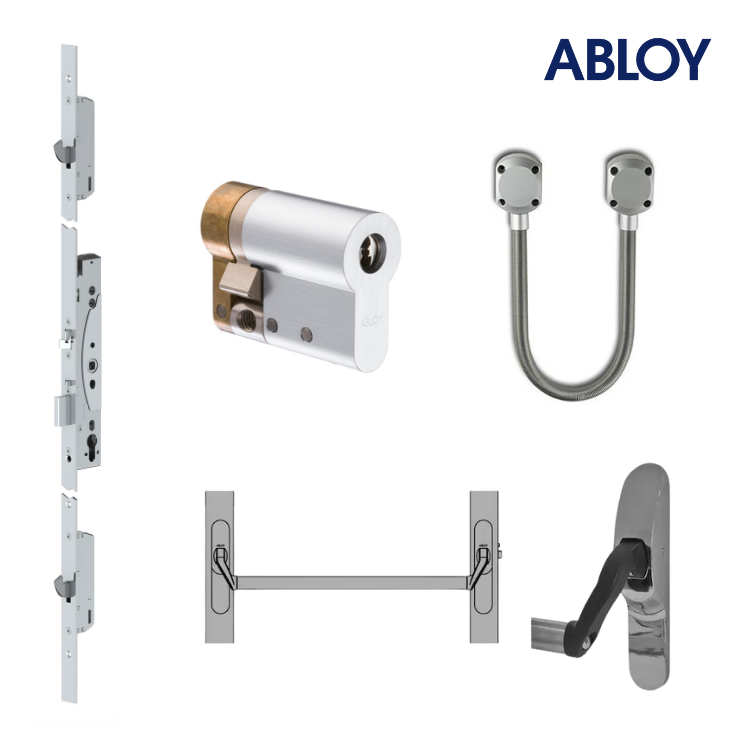

This package includes:

EL466 Multipoint Solenoid Lockcase,

CY326 Single EURO Cylinder,

DL8 Door Loop,

PBE011-EL460 Panic Bar with 1/2 Handle Set,

DC240 door closer (optional)

Backsets available: 30mm, 35mm, 40mm, 45mm

ORDERING CODES:

ABLOY-EL466-30-PACK3MP

ABLOY-EL466-35-PACK3MP

ABLOY-EL466-40-PACK3MP

ABLOY-EL466-45-PACK3MP
