PACKAGE 3ME

Multipoint

ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.

Narrow stile door applications with handle operation, inside handle always operates and the outside handle is controlled and activated on signal from access control system.

Read in, free egress, for narrow stile profile, multipoint doors.

Compliant with EN179 when used with correct furniture, EN1634-1, EN61000-6-1, EN1303 (cylinder), EN14846

Key override at all times from the outside.

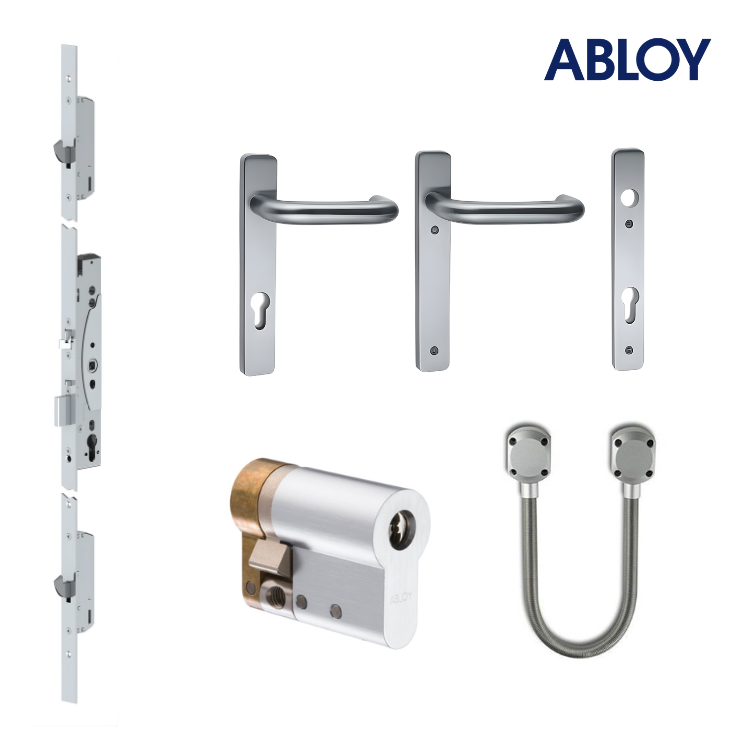

This package includes:

EL466 Solenoid Lockcase,

CY326 Single EURO Cylinder,

DL8 Door Loop,

60-0819-SSS Handle set,

DC240 door closer (optional)

3192750/PZ+BL (alternative)

Backsets available: 30mm, 35mm, 40mm, 45mm

ORDERING CODES:

ABLOY-EL466-30-PACK3ME

ABLOY-EL466-35-PACK3ME

ABLOY-EL466-40-PACK3ME

ABLOY-EL466-45-PACK3ME
