PACKAGE 13P

Escape - High Security - Not for Fire Doors

ABLOY Compliant Lock Packages include everything you need for a fully compliant specification.

High security narrow stile door applications with motor operated deadbolt and latch bolt, Inside panic bar always operates.

Read in, free egress- for narrow stile door.

Complies with EN1125 when used with correct furniture, EN61000-6-l, EN1303 (cylinder), EN14846

Key override at all times from the outside.

Monitoring: Bolt position.

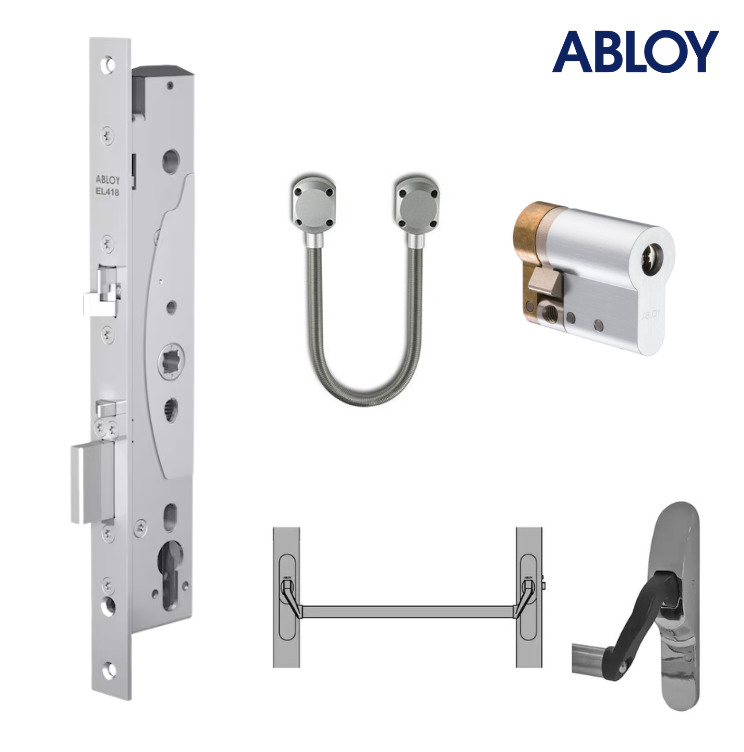

This package includes:

EL418 Solenoid Lockcase,

CY326 Single EURO Cylinder,

DL8 Door Loop,

PBE011-EL420 Panic Bar with cylinder escutcheon,

DC240 optional door closer.



Backsets available: 30 mm, 35 mm, 40 mm, 45 mm.

ORDERING CODES:

ABLOY-MP418-30-PACK13P

ABLOY-MP418-35-PACK13P

ABLOY-MP418-40-PACK13P

ABLOY-MP418-45-PACK13P
